Enhancing Core Quality with Ceramic Foundry Sand in Cold Core-box Casting Processes

In the foundry industry, creating high-quality sand cores is essential for producing dimensionally accurate and defect-free castings. Among the many technologies and materials used in core-making, cold core-box casting has emerged as a reliable and efficient process, especially for complex geometries. At the same time, the choice of core sand greatly affects the quality, strength, and stability of the final core. One of the most promising materials in this regard is ceramic foundry sand. When used in cold core-box casting, it delivers improved dimensional stability, superior thermal resistance, and better surface finish, all of which contribute to stronger, more reliable metal castings.

In this article, we explore how ceramic foundry sand enhances cold core-box casting, especially when combined with water glass (sodium silicate) binder systems. From the basics of the process to the benefits of material selection, this guide covers the key principles and real-world advantages of integrating ceramic foundry sand in core production.

Understanding the Cold Core-box Casting Process

Cold core-box casting is a method used to produce sand cores without applying external heat. Instead of baking the core in an oven, chemical binders are used to harden the sand at room temperature. This offers several advantages, such as energy savings, faster production cycles, and the ability to produce complex geometries with high accuracy.

The process begins by blowing a specially prepared sand mixture—consisting of sand and a chemical binder—into a metal or resin mold (core box). Once the sand fills the cavity, a curing gas, often amine-based or carbon dioxide in the case of water glass systems, is passed through the mold. This initiates a chemical reaction that hardens the binder and solidifies the core. The hardened core is then removed from the mold and used to form the internal cavities of a metal casting.

Traditionally, silica sand has been the most commonly used sand type in this process. However, it has limitations, especially in terms of thermal expansion, strength, and resistance to defects like veining or cracking. This is where ceramic foundry sand presents a major improvement.

What is Ceramic Foundry Sand?

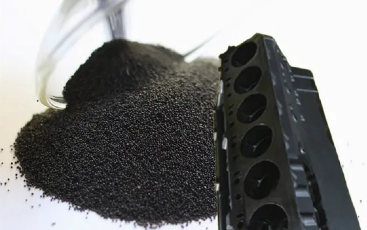

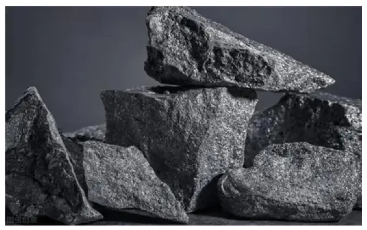

Ceramic foundry sand is an artificial, spherical sand made by melting high-purity bauxite ore in an electric arc furnace, followed by atomization and rapid cooling. The resulting particles are then screened into various grain sizes suitable for different casting applications. Compared to natural silica sand, ceramic sand has several distinct advantages:

• Lower thermal expansion: Ceramic sand exhibits minimal expansion under heat, reducing the risk of core-related casting defects.

• High thermal conductivity: It resists thermal cracking and improves dimensional stability.

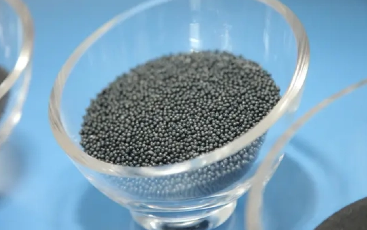

• Spherical shape: Round particles ensure better flowability and compaction, leading to more uniform cores.

• Reusability: Ceramic sand maintains its strength and integrity through multiple recycling cycles.

These properties make ceramic foundry sand an excellent alternative to silica sand, particularly in demanding applications that require high-performance cores.

The Role of Water Glass in Core-making

Water glass, also known as sodium silicate, is a popular inorganic binder used in various core-making processes, including cold core-box and CO₂ processes. In cold core-box casting, water glass is mixed with the sand to form a sticky, moldable mixture. After the core is shaped in the mold, carbon dioxide is passed through the mixture to harden it. The reaction between CO₂ and sodium silicate forms a rigid structure that binds the sand grains together.

The combination of water glass with ceramic sand further enhances the cold core-box process. While water glass alone provides good strength and easy handling, its bonding performance is significantly improved when paired with ceramic sand due to the sand’s smoother surface and uniform grain size. The result is a high-strength core that can withstand the rigors of high-temperature metal casting.

Key Benefits of Using Ceramic Sand in Cold Core-box Casting

1. Improved Dimensional Accuracy

Because ceramic foundry sand has a much lower thermal expansion coefficient than silica sand, it holds its shape more accurately when exposed to molten metal. This means that cores made with ceramic sand are less likely to deform or expand during casting, which in turn results in more precise castings with tighter tolerances.

This accuracy is especially important in industries like automotive and aerospace, where even small deviations in casting dimensions can affect engine performance or structural integrity.

2. Reduced Casting Defects

Traditional sand cores can suffer from defects such as veining, gas porosity, and metal penetration. These are often caused by the sand’s thermal instability or inconsistent grain structure. Ceramic sand’s uniformity and high resistance to thermal shock reduce these risks significantly.

Veining, for example, occurs when the sand expands unevenly and cracks, allowing molten metal to penetrate. Ceramic sand minimizes this problem because of its excellent thermal resistance and lower expansion. Similarly, the consistent round shape of ceramic grains helps prevent voids or weak spots in the core, leading to fewer casting defects overall.

3. Higher Strength and Better Moldability

Ceramic sand’s spherical particles offer better flow characteristics compared to angular silica grains. This ensures more uniform filling of the core box and tighter compaction. As a result, cores made from ceramic sand exhibit higher compressive and tensile strength.

These stronger cores are less likely to break or collapse during handling or pouring, reducing scrap rates and production downtime.

4. Excellent Surface Finish

The smoother surface of ceramic sand contributes to cleaner core and mold surfaces. This translates directly to improved surface quality on the final metal casting. Parts that require minimal post-processing or machining benefit significantly from this feature, saving time and reducing labor costs.

This is particularly useful for visible or precision parts in industrial, consumer, or structural applications, where surface aesthetics and smoothness are essential.

5. Eco-Friendly and Reusable

Ceramic foundry sand is highly durable and maintains its integrity through repeated use. Unlike silica sand, which degrades quickly under high temperatures and requires frequent replacement, ceramic sand can be reclaimed and reused multiple times with minimal performance loss.

This reusability not only saves money over the long term but also reduces the environmental footprint of the foundry process by minimizing sand waste and disposal needs.

6. Faster Production Cycles

Because cold core-box casting with ceramic sand does not require oven curing, cycle times are shortened significantly. The curing gas hardens the cores within seconds or minutes, depending on core size, and the cores can be used almost immediately. When ceramic sand is used, its excellent flowability and quick release from the mold further streamline the process, enhancing productivity.

Applications That Benefit from Ceramic Sand and Cold Core-box Casting

Industries that require complex castings with tight tolerances, minimal defects, and high performance stand to benefit the most from this advanced core-making combination. Typical applications include:

• Automotive engine blocks and cylinder heads

• Hydraulic and pneumatic components

• Aerospace turbine housings

• Industrial pump and valve bodies

• Architectural castings with intricate designs

In each of these applications, the quality and strength of the core directly affect the final casting. A small failure in the core can result in rework, scrap, or even critical part failure. The enhanced performance of ceramic sand mitigates these risks and supports consistent production quality.

Best Practices for Integrating Ceramic Sand in Your Process

If you’re considering switching from traditional silica sand to ceramic foundry sand in cold core-box casting, here are a few practical recommendations:

• Evaluate your binder system compatibility: Ceramic sand pairs well with water glass, but binder formulations may need to be adjusted slightly to match the new sand characteristics.

• Calibrate your core box filling equipment: Because ceramic sand flows more easily, equipment settings such as air pressure and fill time may require fine-tuning.

• Train your operators: Core-makers may need some training to handle and reclaim ceramic sand correctly, particularly during the transition phase.

• Conduct pilot testing: Before full-scale implementation, trial runs can help fine-tune process parameters and ensure smooth integration into your production line.

Future Outlook

With increasing environmental regulations, rising energy costs, and growing demands for high-quality cast components, the foundry industry is under pressure to adopt more efficient and sustainable practices. Ceramic foundry sand offers a compelling solution. Its performance advantages, coupled with compatibility with cold core-box casting, position it as a material of choice for the future.

Continued innovation in binder chemistry, sand reclamation systems, and casting simulation tools will further enhance the integration of ceramic sand into mainstream foundry practices.

Conclusion

The cold core-box casting process is already a staple in the production of high-precision sand cores, and the addition of ceramic foundry sand brings it to an even higher level of performance. From better thermal stability and higher strength to improved surface finish and reduced waste, the benefits are clear and measurable.

By upgrading to ceramic foundry sand, manufacturers can reduce casting defects, increase productivity, and extend the life of their sand cores—all while improving environmental sustainability. Whether you’re producing automotive, aerospace, or industrial castings, the synergy between cold core-box technology and ceramic sand delivers unmatched advantages.

As the foundry industry continues to evolve, embracing high-performance materials like ceramic foundry sand will be essential for staying competitive and meeting the growing demands of quality and efficiency.
