- All
- Product Name
- Product Keyword
- Product Model
- Product Summary
- Product Description
- Multi Field Search
Views: 0 Author: Site Editor Publish Time: 2026-03-24 Origin: Site
Choosing the right abrasive for surface preparation is a constant balancing act. Operations managers must weigh aggressive cutting speed against media longevity and overall operational cost. While newer synthetic abrasives enter the market, one material consistently proves its value in demanding industrial environments. Brown Fused Alumina (BFA) remains the workhorse for heavy-duty blasting, offering a unique combination of toughness, hardness, and recyclability that is hard to beat.
This guide provides a technical roadmap for procurement managers, blast engineers, and surface preparation specialists. We will explore the material science behind BFA's performance, compare it against key alternatives, and detail the operational parameters needed to maximize its value. You will gain a clear understanding of BFA's suitability for specific substrates and how to calculate its return on investment for your projects.
Superior Toughness: BFA offers higher impact resistance than White Fused Alumina (WFA), making it more recyclable (7–10 cycles).
Substrate Sensitivity: Critical warning against using BFA on stainless steel or aluminum due to iron oxide (Fe₂O₃) contamination risks.
Efficiency Benchmarks: Optimal performance typically occurs at 70–90 PSI with F24–F36 grit for structural steel.
TCO Advantage: While more expensive than copper slag or silica sand, BFA’s recyclability significantly lowers the Total Cost of Ownership (TCO) in closed-loop systems.
Brown Fused Alumina's dominance in industrial blasting is not accidental; it stems from a specific and robust technical profile. Its unique properties are a direct result of its chemical composition and the highly controlled manufacturing process it undergoes. Understanding these characteristics is key to leveraging its full potential.

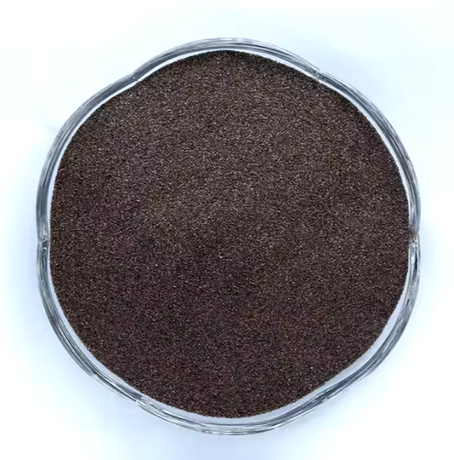

At its core, BFA is a high-purity abrasive, typically composed of 95% to 97% aluminum oxide (Al₂O₃). This high alumina content is the source of its exceptional hardness. However, it's the small percentage of titanium dioxide (TiO₂), usually around 2-3%, that gives BFA its signature toughness. The TiO₂ acts as a "toughening agent" within the crystalline structure, increasing the material's resistance to fracturing on impact. This prevents premature grain shattering and allows the media to be recycled multiple times.
With a hardness of 9 on the Mohs scale, BFA is one of the hardest minerals available, surpassed only by materials like diamond and silicon carbide. This hardness allows it to cut through tough mill scale, rust, and old coatings with ease. Critically, this hardness is paired with lower friability compared to its higher-purity cousin, White Fused Alumina (WFA). Friability is the tendency of a material to break down under pressure. BFA’s lower friability means its angular grains maintain their sharp cutting edges for longer, resulting in an aggressive "micro-cutting" action that efficiently removes surface contaminants and creates a deep anchor profile. This is distinct from softer media that merely peen or hammer the surface.

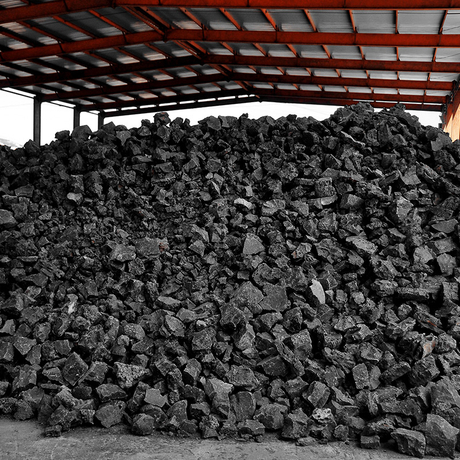

The performance of Brown Fused Alumina Powder is forged in fire. The process begins with raw bauxite ore, which is melted in an electric arc furnace at temperatures exceeding 2000°C. This intense heat purifies the material and forms the aluminum oxide crystals. The subsequent cooling phase is just as critical. A controlled, slow cooling cycle, often lasting 24 to 48 hours, allows large, strong α-alumina crystals to form. Rapid cooling would result in smaller, weaker crystals, leading to a more friable and less effective abrasive. This meticulous process ensures the final product has the optimal crystal size and edge sharpness required for industrial-grade blasting.
The shape of the abrasive grain, its morphology, directly influences the surface finish. BFA grains are distinctly angular. When propelled at high velocity, these sharp, multi-faceted edges act like microscopic cutting tools, chiseling away at the substrate. This creates a uniform, etched surface with a distinct anchor profile—a series of peaks and valleys measured in mils (thousandths of an inch). This profile is essential for achieving strong mechanical adhesion for subsequent coatings, thermal sprays, or paints. The specific angularity can be controlled during the crushing and sizing process to produce grades that create deeper or finer profiles as required.
Selecting the right blasting media involves a cost-benefit analysis that extends beyond the initial purchase price. Factors like cutting speed, substrate compatibility, recyclability, and desired surface finish all play a critical role. Here’s a comparative look at how BFA stacks up against other common industrial abrasives.
The primary difference between BFA and WFA is purity. WFA is over 99% pure Al₂O₃, with virtually no iron oxide. This makes it the only choice for applications where ferrous contamination is unacceptable, such as aerospace components, medical implants, and certain stainless steel applications. However, this purity comes at a cost: WFA is more friable than BFA. It breaks down faster, creating a finer profile but reducing its recyclability. You should pay the premium for WFA when high-purity and zero-iron requirements are non-negotiable. For general-purpose steel preparation, BFA offers superior toughness and cost-efficiency.
Garnet is another popular, fast-cutting abrasive. On lighter rust and thinner coatings, garnet can sometimes offer a higher cutting speed due to its higher density and number of impacts per second. However, when faced with very hard coatings or thick, tenacious mill scale (often with a hardness of 500–600 HV), BFA's superior hardness gives it the edge. BFA grains are more effective at fracturing and shattering these tough layers, whereas garnet may struggle. If your primary work involves heavy-duty scale removal on structural steel, BFA is often the more aggressive and efficient choice.
Sintered aluminum oxide is a premium, ceramic abrasive known for its exceptional durability. It boasts a cycle life of 25 or more recycles, far exceeding BFA's typical 7–10 cycles. This longevity, however, comes with a significantly higher initial cost. The Total Cost of Ownership (TCO) calculation becomes crucial here. In high-volume, automated blasting cabinets with efficient media recovery systems, the extended life of sintered media can eventually offset its price. For manual blasting operations or systems with less-than-perfect recovery, the lower upfront cost and robust performance of BFA provide a better TCO.
A logic-based approach can simplify your media choice. Consider these factors in order:
Substrate Material: Is it non-ferrous or stainless steel? If yes, rule out BFA due to contamination risk. Stick with WFA, glass beads, or other non-ferrous media. For carbon steel, BFA is a prime candidate.
Desired Cleanliness & Profile: What standard must you meet? For an SSPC-SP 5 (White Metal) finish with a deep profile (3.0+ mils) for thick coatings, a coarse BFA is ideal. For a less aggressive Sa 2.5 (Near-White) finish, a finer grit or a less aggressive media might suffice.
Equipment Type: Pressure blast systems are more aggressive and better suited for BFA’s toughness. Suction (or siphon) blast systems have lower media velocity and may perform better with faster-cutting but less durable media like garnet on some applications.
Recycling Capability: Do you have a closed-loop system? If so, the recyclability of BFA offers a significant cost advantage over single-use abrasives like slag or sand. If not, the TCO benefit is lost.
The table below summarizes key decision points:
| Abrasive Media | Key Advantage | Best Use Case | Limitation |
|---|---|---|---|
| Brown Fused Alumina | Toughness, recyclability, cost-effectiveness | Heavy rust/scale removal on carbon steel | Contaminates stainless steel and aluminum |
| White Fused Alumina | High purity, zero iron | Aerospace, medical, stainless steel prep | Higher cost, more friable |
| Garnet | Fast cutting on light coatings, low dust | Marine and new steel applications | Less effective on very hard scale |
| Sintered Alumina | Extreme durability (25+ cycles) | Automated, high-throughput systems | Very high initial purchase price |
Using the right abrasive is only half the battle; using it on the right substrate is paramount to achieving a durable, long-lasting finish and avoiding catastrophic failures. Brown Fused Alumina Powder is a powerful tool, but its application must be precise and well-understood.
This is the "gold standard" application for BFA. Its hardness and toughness make it exceptionally effective at removing heavy mill scale, deep-seated rust, and multiple layers of old paint from carbon steel surfaces. Using coarse grits like F24 or F36, operators can efficiently achieve the highest levels of surface cleanliness as defined by organizations like the Society for Protective Coatings (SSPC) and ISO.
SSPC-SP 5 / NACE No. 1 / Sa 3 (White Metal Blast Cleaning): The surface is free of all visible oil, grease, dust, dirt, mill scale, rust, coating, oxides, and other foreign matter. BFA is one of the most cost-effective media for reaching this stringent standard, required for critical applications like tank linings and immersion service.
SSPC-SP 10 / NACE No. 2 / Sa 2.5 (Near-White Metal Blast Cleaning): At least 95% of the surface area is free of all visible residues. This is the most common standard specified for high-performance coating systems on bridges, pipelines, and structural steel, and it is easily achieved with BFA.
Knowing where not to use BFA is as important as knowing where to use it. Misapplication can lead to costly rework and long-term performance issues.
Using BFA on stainless steel is a critical error. The small amount of iron oxide (Fe₂O₃) in the BFA grains can become embedded in the soft stainless steel surface during the high-velocity impact. This iron contamination disrupts the stainless steel's passive layer—the chromium-oxide film that protects it from corrosion. With this protective layer compromised, localized corrosion, or pitting, can begin, destroying the very properties for which stainless steel was chosen.
Similar to stainless steel, blasting aluminum with BFA introduces iron particles onto the surface. This creates a risk of galvanic corrosion, an electrochemical process where one metal corrodes preferentially when in contact with another in the presence of an electrolyte. Furthermore, aluminum is a relatively soft metal, and the aggressive cutting action of BFA can easily warp thin sheets or create a profile that is too deep for many applications. Safer alternatives for aluminum include glass beads (for cleaning and peening), WFA, or plastic media.
Beyond structural steel, BFA excels in several other industrial applications:
Investment Casting Cleaning: It effectively removes the ceramic shell material from investment castings without damaging the fine details of the cast part.
Heat-Treat Scale Removal: The hard, dark scale that forms on metal parts after heat treatment is brittle and difficult to remove, but BFA’s hardness makes quick work of it.
Surface Preparation for Thermal Spray Coatings: Thermal spray coatings require a very clean, angular, and deep anchor profile to achieve a strong mechanical bond. BFA is the industry standard for preparing surfaces for this process.
Owning a high-performance abrasive like Brown Fused Alumina is one thing; optimizing its use to maximize efficiency and return on investment is another. Fine-tuning your operational parameters is essential for controlling costs and achieving consistent, high-quality results.
The size of the abrasive grain is directly linked to the anchor profile it creates and the speed at which it works. Grit sizes are typically graded according to FEPA (Federation of European Producers of Abrasives) or ANSI (American National Standards Institute) standards.
Coarse Grits (e.g., F16, F24, F36): These larger particles have more mass and deliver higher impact energy. They are ideal for stripping heavy coatings and creating deep anchor profiles (e.g., 3.0–4.0 mils) required for thick-film industrial coatings.
Medium Grits (e.g., F46, F54, F60): This range offers a balance between cutting speed and surface finish. It's often used for general-purpose cleaning and creating a moderate profile suitable for a wide range of paints and coatings.
Fine Grits (e.g., F80, F120, F220): Smaller particles are used for cleaning delicate components, removing light contamination, or creating a very fine etch for aesthetic purposes or for thin-film coatings.
The relationship between air pressure (PSI), nozzle type, and standoff distance is critical. A common mistake is to simply "crank up the pressure," assuming more is always better. This often leads to accelerated media breakdown and increased equipment wear without a proportional increase in productivity.For most carbon steel applications with BFA, optimal performance is found between 70 and 90 PSI. Increasing pressure beyond 100 PSI often shatters the BFA particles on impact, drastically reducing their recyclability. The nozzle standoff distance should typically be 12-18 inches from the workpiece; too close, and the blast pattern is too small; too far, and the impact energy dissipates, reducing efficiency.
Estimating media consumption is crucial for accurate job costing and inventory management. A basic formula can provide a solid baseline:
Media Weight = Surface Area (sq. ft.) × Profile Depth (mils) × Consumption Rate (lbs/sq. ft./mil)
The "Consumption Rate" is a variable that you must determine through testing, as it depends on your specific equipment, pressure, and the condition of the substrate. However, once established, this formula allows for much more accurate project bidding.
To realize the TCO advantage of Brown Fused Alumina Powder, a robust recycling system is non-negotiable. Best practices include:
Dust Extraction: A powerful dust collector is the first step. It removes fractured, undersized media particles ("fines") and pulverized contaminants from the usable media. This improves operator visibility and ensures that only full-sized grains are returned to the blast pot.
Magnetic Separation: Before the media is returned to the pot, it should pass through a magnetic separator. This step is vital for removing metallic debris and iron-based contaminants stripped from the workpiece, keeping the abrasive clean.
Air-Wash Separator: This device uses a curtain of air to separate usable, heavy media from lighter waste particles, providing a final cleaning stage before the abrasive is reused.
A well-maintained recovery system can reliably extend the life of BFA to its full 7–10 cycle potential, drastically reducing media consumption and disposal costs.
A successful blasting operation doesn't end when the nozzle is turned off. Rigorous quality control and a systematic approach to troubleshooting are essential for ensuring the prepared surface meets specification and for preventing costly coating failures down the line.
Proper preparation begins before a single grain of abrasive is blasted. The most common cause of media fouling and premature coating failure is surface contamination that isn't removed beforehand. Always inspect the substrate for oil, grease, or other chemical residues. According to SSPC-SP 1, these contaminants must be removed through solvent cleaning *before* blasting. Blasting over them will not remove them; it will only smear them across the surface and contaminate your entire supply of abrasive media.
After blasting is complete, a series of checks must be performed to verify the surface is ready for coating:
Visual Inspection: Compare the surface against the specified visual standard (e.g., SSPC-VIS 1) to confirm the required level of cleanliness (SP-5, SP-10, etc.).
Anchor Profile Measurement: The surface profile depth must be measured to ensure it is within the coating manufacturer's specification. This is most commonly done using replica tape (Testex Tape), which creates an impression of the surface that can be measured with a micrometer.
Soluble Salt Testing: Invisible contaminants like chlorides, sulfates, and nitrates can remain on the surface after blasting and draw moisture through the coating, causing osmotic blistering. A patch test (e.g., Bresle method) should be used to check for these soluble salts, especially in marine or industrial environments.
Even in well-run operations, problems can arise. Here’s how to address the most common issues:
| Issue | Potential Causes | Solutions |
|---|---|---|
| Inconsistent Anchor Profile | - Media has broken down (too many fines) - Fluctuating air pressure - Inconsistent operator technique (standoff distance/speed) | - Check and service the media reclaimer - Verify compressor output and check for air leaks - Provide operator training on consistent technique |
| Flash Rusting | - High ambient humidity (>85% RH) - Surface temperature is below the dew point - Time between blasting and priming is too long | - Use dehumidification equipment - Monitor environmental conditions - Apply a "blast-through-prime" or hold primer immediately after inspection |
| Excessive Dust Levels | - Poorly functioning dust collector - Low-quality, friable abrasive - Using "unwashed" grade of BFA | - Service the dust collection system and check for leaks - Ensure you are using a high-quality, durable BFA - Specify a "washed" or "dust-free" grade of BFA to reduce nuisance dust |
Brown Fused Alumina has earned its reputation as an industrial workhorse for good reason. It offers a powerful and unique balance of hardness for aggressive cutting, toughness for extended recyclability, and an overall cost-per-cycle that is difficult for other media to match in heavy-duty applications. When used correctly on appropriate substrates like carbon and structural steel, it provides a reliable and efficient path to achieving stringent surface preparation standards.
For your high-volume carbon steel preparation projects, especially within closed-loop systems where recyclability can be maximized, BFA should be a primary consideration. Conversely, for high-purity applications in the aerospace, medical, or food-grade sectors, pivot to its contaminant-free counterpart, White Fused Alumina. The next logical step is to conduct a pilot test. By using a few different grades of BFA on a sample workpiece, you can establish baseline consumption rates and performance metrics, allowing for more accurate and competitive bidding on your upcoming contracts.
A: Yes, BFA is excellent for wet blasting as it reduces dust significantly. However, you must add a rust inhibitor (e.g., sodium nitrite) to the water. This prevents immediate flash rusting on the steel substrate as soon as it's exposed to air. The inhibitor protects the newly prepared surface until a primer can be applied.
A: In a well-maintained pressure blast system with efficient dust collection and media reclaiming, you can typically recycle BFA 7 to 10 times. After this point, the angular grains become rounded and lose their aggressive cutting edges, leading to a significant drop in cleaning efficiency. The exact number of cycles depends on your blast pressure and the hardness of the surface being cleaned.
A: The terms refer to the grit size range. Macro-grits (typically FEPA sizes F12 to F220) are the larger particles used for traditional abrasive blasting, grinding wheels, and surface preparation. Micro-powders (F240 and finer) are much smaller particles used for precision applications like lapping, fine polishing, and technical ceramics where a much smoother surface finish is required.
A: Brown Fused Alumina contains no free silica, which makes it a much safer alternative to silica sand. However, like any airborne particulate, it is considered a nuisance dust. Inhaling it can cause respiratory irritation. It is mandatory to use NIOSH-approved respiratory protection, proper ventilation, and other personal protective equipment (PPE) when handling or blasting with BFA.
English
